7675 BMF Gen 2 Billet Wheel Ceramic Ball Bearing T4 Turbocharger

7675 BMF Gen 2 Billet Wheel Ceramic Ball Bearing T4 Turbocharger

Regular price $1,099.00
Regular price Sale price $1,099.00
Sold out
Shipping calculated at checkout.
18 people are viewing this right now

AvailabilityIn stock

SKU: PAS-76BMF-CBB
Vendor: On3 Performance
Category: Turbochargers
Tags:
View full product details

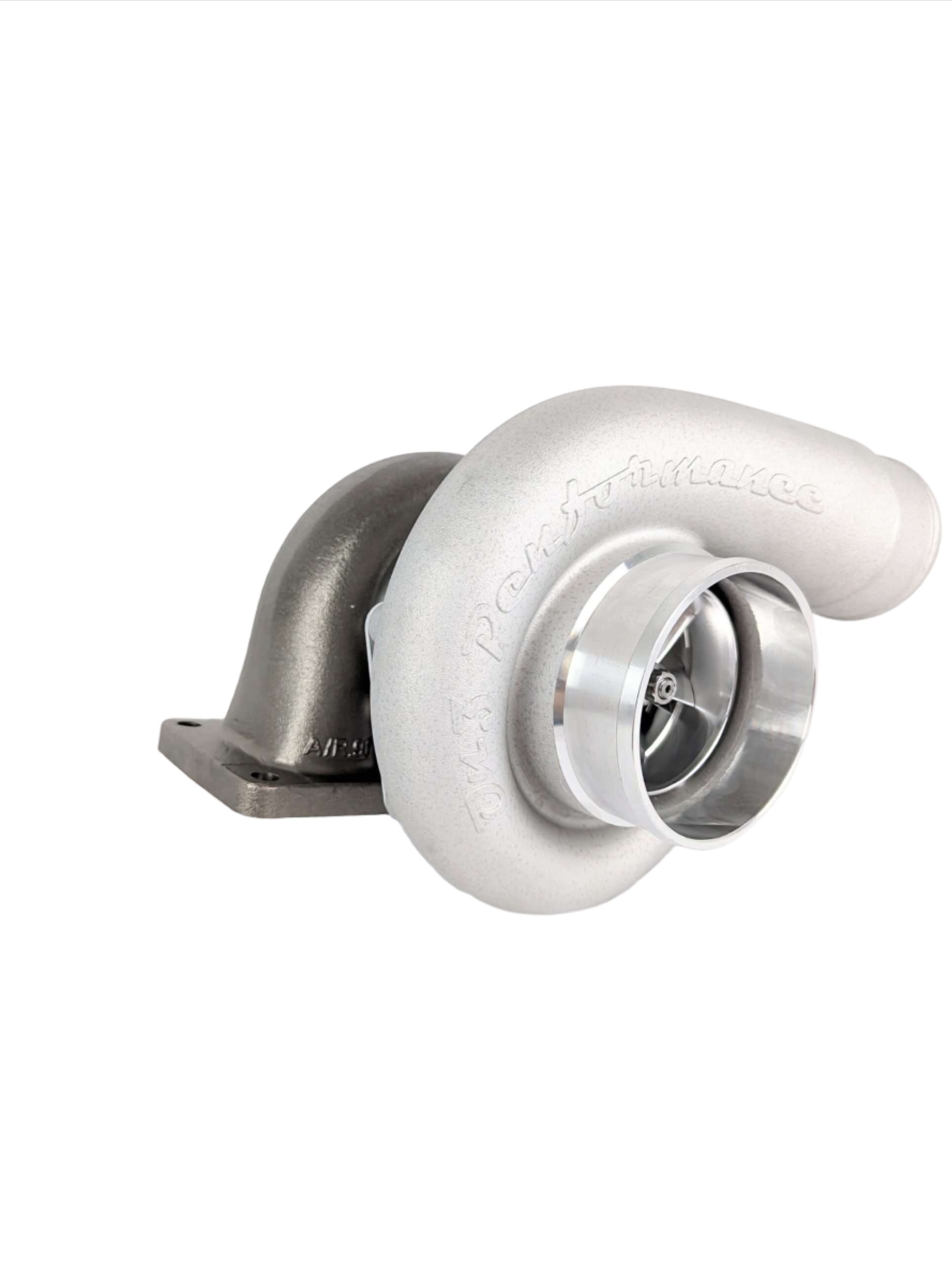

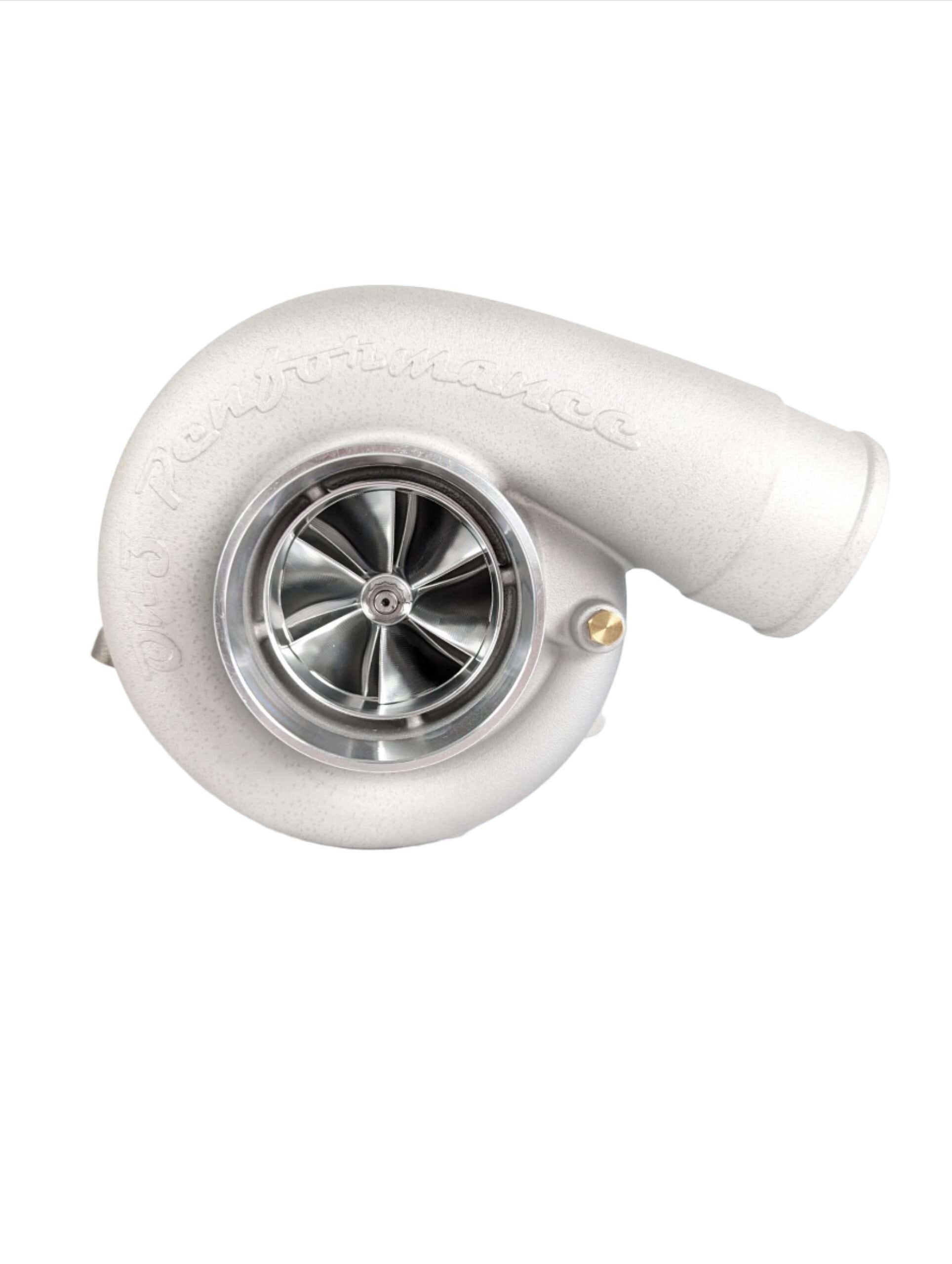

The ON3 Performance 76mm BMF Ceramic Ball Bearing Turbocharger is a proven high-performance upgrade for builders looking for serious horsepower, faster spool response, and long-term reliability. Designed as a direct bolt-on upgrade for most ON3 T4 turbo kits, this turbocharger is an excellent choice for high-horsepower street and race applications.

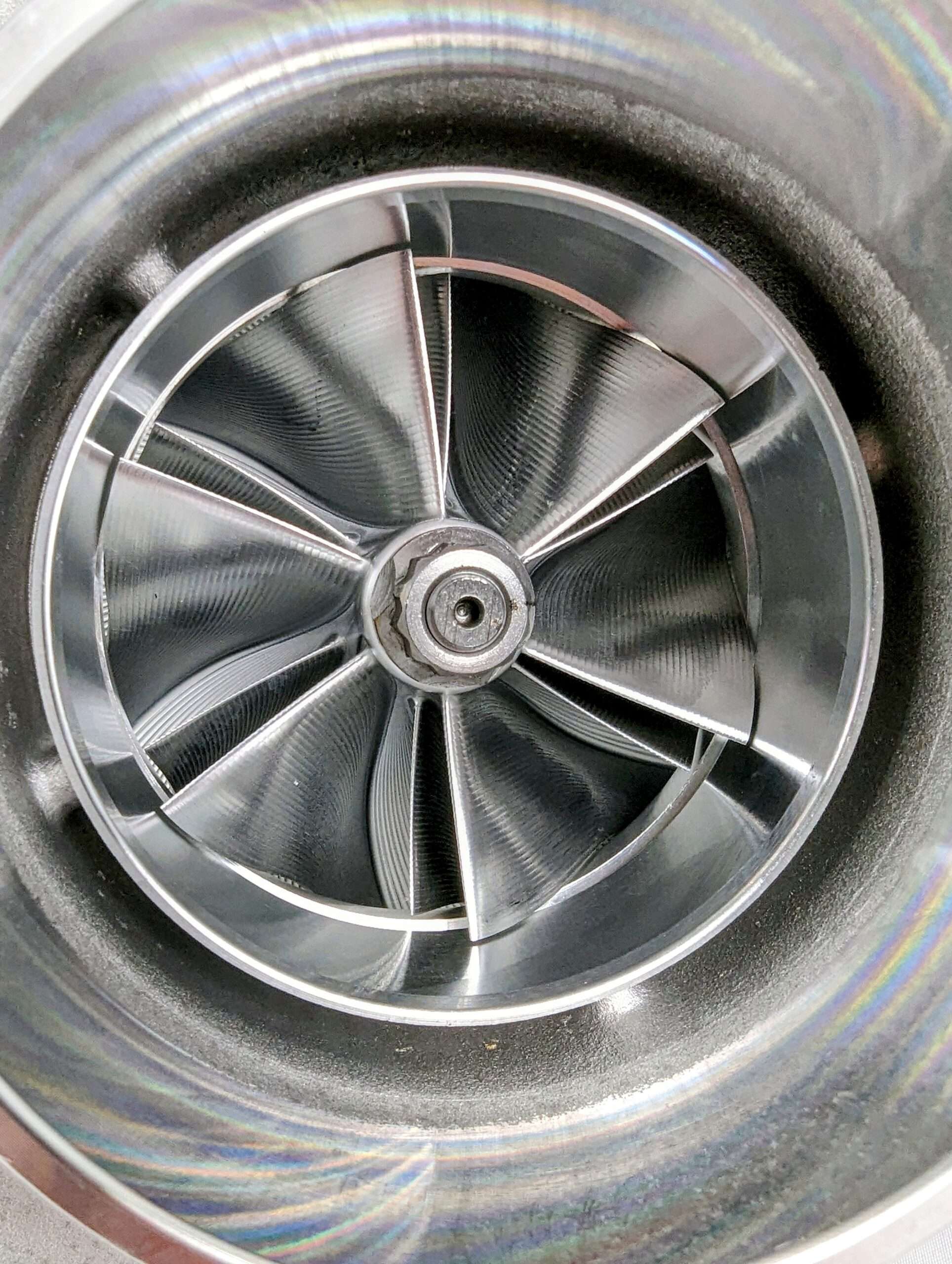

Every 76mm BMF turbocharger comes standard with a CNC-machined billet aluminum compressor wheel, delivering improved strength, durability, and airflow efficiency over traditional cast wheel designs.

This listing is for the Ceramic Ball Bearing 76mm BMF configuration, built for quicker spool-up, reduced friction, and exceptional reliability under demanding boost and heat conditions. Ceramic ball-bearing center sections are ideal for performance applications where response and durability are critical.

Proven Performance

During in-house testing, ON3 ran the prototype 76mm BMF on a shop 2011 Mustang 5.0 single turbo setup, producing 830+ RWHP at 15 PSI through an automatic transmission, proving its capability in serious high-power applications.

This turbocharger is a strong option for builders wanting large-frame airflow while maintaining responsive spool characteristics for street-driven or race-focused combinations.


Features & Benefits:

  • Direct bolt-on upgrade for most ON3 T4 turbo kits
  • 76mm BMF turbocharger
  • Ceramic Ball Bearing center section
  • Faster spool response with reduced rotating friction
  • Improved durability and reliability under high boost
  • CNC-machined billet aluminum compressor wheel
  • Excellent for high-horsepower street or race builds
  • Designed for serious airflow and top-end power
  • Proven 830+ RWHP capability in tested applications

Compressor Side Specifications

  • Anti-Surge Compressor Cover
  • 4.0" Compressor Inlet
  • 3.0" Compressor Outlet
  • CNC-Machined Billet Aluminum Compressor Wheel
  • 1/8" NPT Boost Reference Port

Turbine / Exhaust Side Specifications

  • 75mm Turbine Wheel
  • T4 Turbine Flange
  • .96 A/R Exhaust Housing
  • 3.0" V-Band Outlet

The ON3 Performance 76mm BMF Ceramic Ball Bearing Turbocharger is a proven solution for builders needing strong top-end airflow, quicker spool response, billet wheel durability, and dependable performance in high-boost street or race applications.
