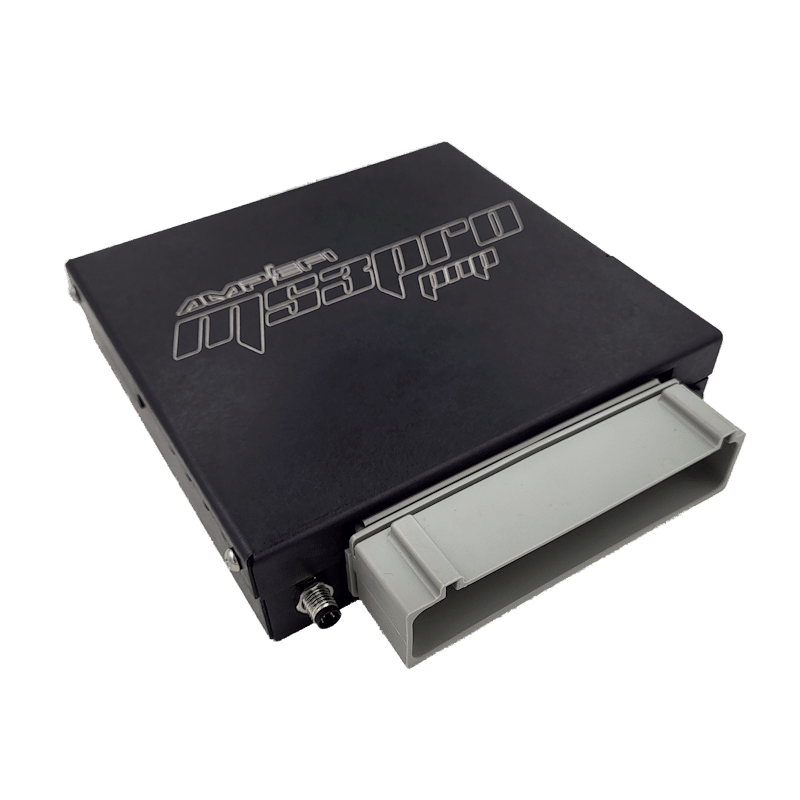

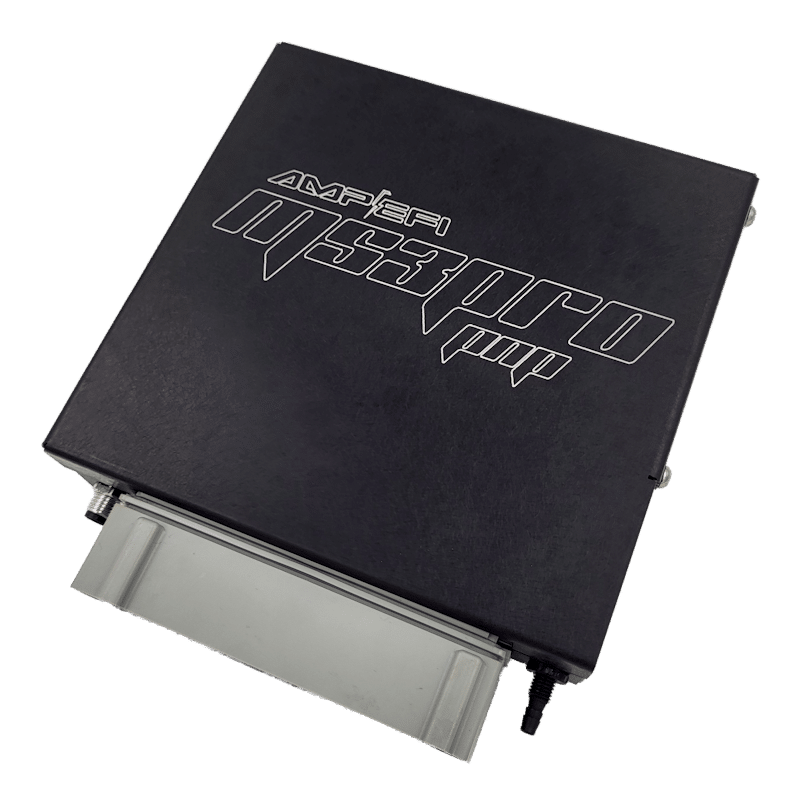

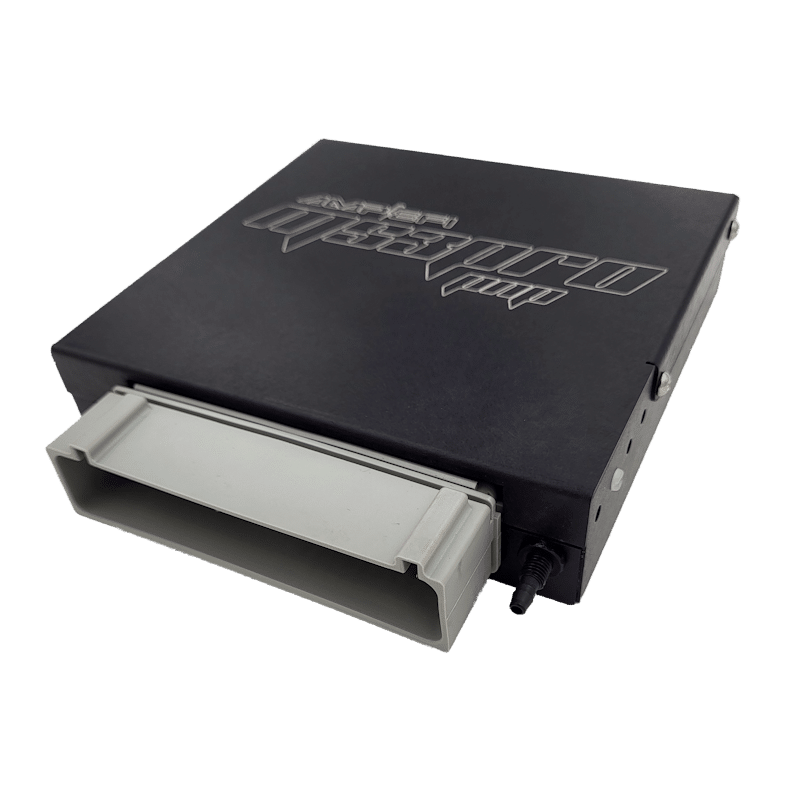

Enhance your 1986–1993 Ford Foxbody Mustang 5.0 with the MSPNP-Pro ECU, a fully standalone, plug-and-play engine management system engineered for performance, reliability, and ease of installation. Designed for off-road and motorsports use, this ECU provides complete control for serious enthusiasts and racers who demand precise, custom tuning.

Important:
This ECU is designed for manual transmission vehicles only and does not support automatic transmission control.

Compatibility

Supported Applications:

1986–1993 Ford Mustang 5.0 (302ci / 5.0L – Manual Transmission)

1986–1988 Ford Thunderbird 5.0 (302ci / 5.0L – Manual or factory automatic transmission)

Key Features
Plug-and-Play Design

Direct plug-in installation with no wiring required for basic operation

Average installation time: under one hour

Pre-loaded 5.0L HO base calibration

Tuning & Data Logging

Real-time tuning and data logging via laptop

8 GB internal data logging with built-in SD storage

Compatible with most aftermarket wideband oxygen sensor systems

Engine Control Capabilities

16×16 fuel and ignition tables for high-resolution tuning

Multiple acceleration enrichment strategies

Closed-loop idle speed control for consistent idle under varying conditions

Air conditioning load compensation

Eight sequential injector outputs with individual trim tables

Supports OEM TFI ignition and coil-on-plug conversions with up to eight sequential ignition outputs

Onboard high-impedance injector drivers

Eliminates the need for a factory MAF sensor for speed-density tuning

Advanced Features

12×12 AFR target tables for precise closed-loop fuel control

Multiple traction control strategies (front wheel speed input required)

Built-in 3-step rev limiter, launch control, flat-shift, and burnout limiter

Time-based timing and boost increase after launch

Real-time barometric pressure correction

Internal 4-bar MAP sensor supporting up to 44 psi of boost

Configurable engine protection, warning outputs, and overboost safeguards

Closed-loop boost control (requires external boost control solenoid)

CO₂-based boost control with RPM, throttle, speed, or gear-based strategies

Dual-channel nitrous control supporting wet or dry systems, with staged or progressive control

Rally-style anti-lag functionality

Water injection control with on/off or variable output

Knock sensor input with adjustable sensitivity and crank angle windowing

Table switching for on-the-fly fuel and ignition map changes

Flex fuel sensor input for seamless switching between gasoline and E85

Compatible with many aftermarket digital dashes and displays

CANBus connectivity for expansion modules and additional controllers

What’s Included

1986–1993 Ford Mustang Foxbody MS3Pro Plug-and-Play ECU

6-foot vacuum hose with T-fitting for MAP reference

26-pin options connector with 6-inch pigtail

M8 serial tuning cable

TunerStudio registration code
