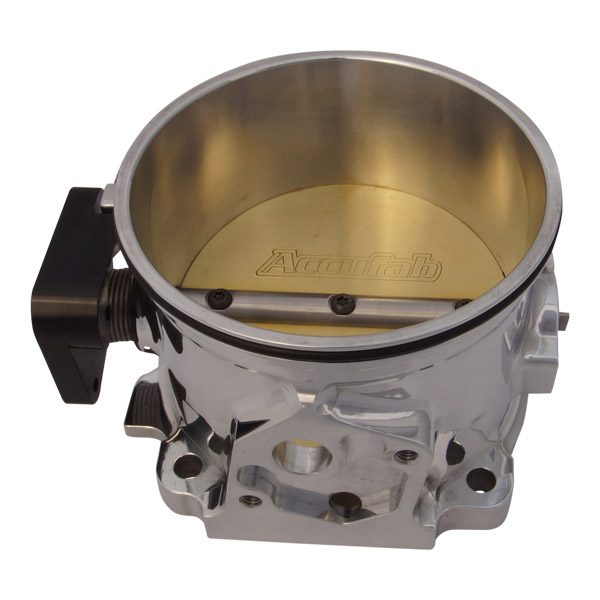

Designed for serious horsepower applications, the Accufab 105mm MAX Single Blade Throttle Body delivers exceptional airflow, precision engineering, and race-proven durability. Built specifically for 1986-1993 Ford Mustang 5.0L applications, this throttle body is ideal for high-performance naturally aspirated, turbocharged, and supercharged engine combinations.
With an impressive 1,550 CFM airflow rating, the 105mm MAX is engineered to support extreme horsepower levels while providing outstanding throttle response and unrestricted airflow.
The Accufab 105mm MAX incorporates premium features designed for demanding performance applications:
Every 105mm MAX throttle body measures 105mm at the throttle blade and requires 4.5-inch intake tubing. No vacuum elbow is included, providing a clean, unrestricted airflow path for maximum performance.
Each throttle body is CNC-machined from 6061-T6 billet aluminum for exceptional strength, precision, and durability.
Premium construction includes:
| Specification | Details |
|---|---|
| Bore Size | 105mm |
| Airflow | 1,550 CFM |
| Inlet Size | 4.5" |
| Material | CNC-Machined 6061-T6 Billet Aluminum |
| Finish | Polished or Black Anodized |
| Application | 1986-1993 Ford Mustang |
| Engine | 5.0L |
| Country of Manufacture | USA |
Mounting hardware is not included.
Idle speed should be adjusted by properly calibrating the Throttle Position Sensor (TPS). Do not adjust the factory-set throttle stop screws, as they are preset by Accufab to ensure proper throttle blade alignment and idle performance.
The Accufab 105mm MAX Single Blade Throttle Body is built for enthusiasts demanding maximum airflow, superior sealing, and uncompromising quality. Featuring billet aluminum construction, a split-shaft design, and an impressive 1,550 CFM airflow rating, it is an ideal choice for high-horsepower Fox Body Mustang builds where performance and reliability are paramount.
