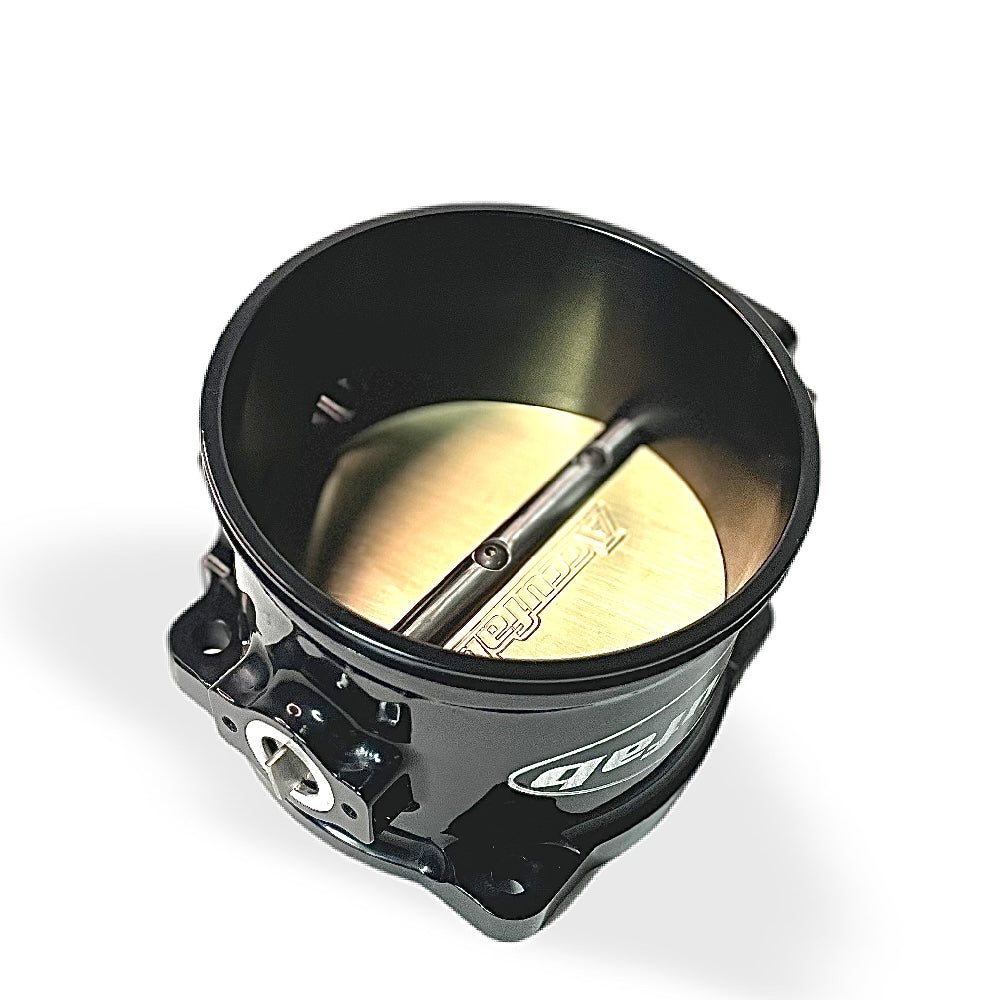

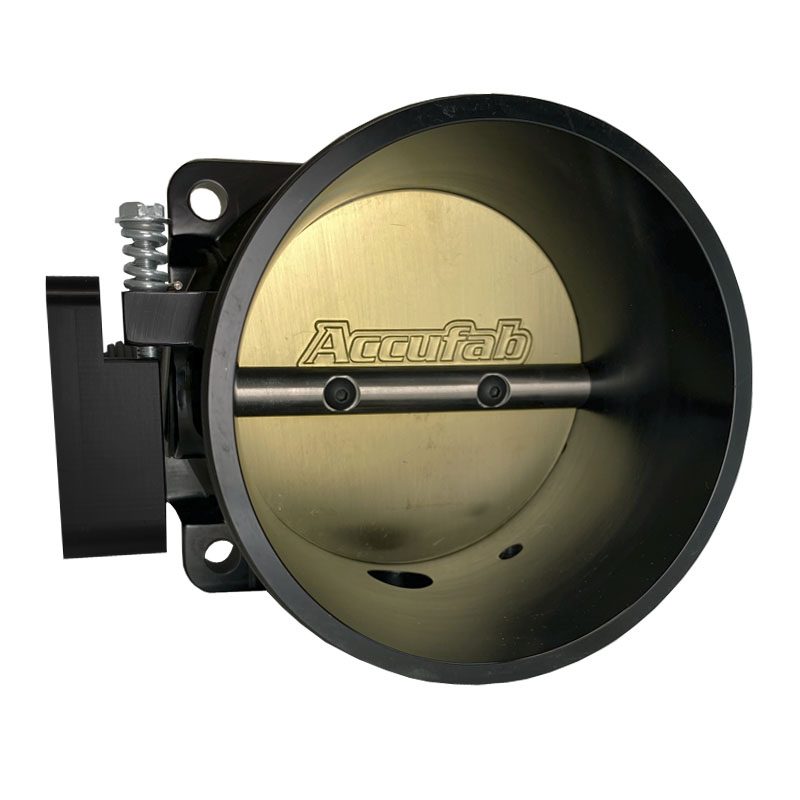

Engineered for serious horsepower, the Accufab 105mm MAX Single Blade Throttle Body delivers exceptional airflow and precision for high-performance street, race, and boosted applications. Designed specifically for 1986-1993 Ford Mustang 5.0L platforms, this throttle body is an excellent choice for builders requiring maximum airflow without compromising quality or reliability.

Flowing an impressive 1,550 CFM, the 105mm MAX is built to support extreme horsepower combinations while providing crisp throttle response and unrestricted airflow.

Engineered for High-Boost Performance

The Accufab 105mm MAX incorporates several premium design features to withstand demanding high-performance applications:

• Full stainless steel throttle shaft
• Split-shaft design for increased strength under high boost
• Hard anodized black 3-position linkage arm
• Threaded ball stud included
• Integrated Idle Air Control (IAC) provision
• Precision O-ring groove seal
• Air leak resistant to 100 PSI
• Large 4.5-inch inlet

Whether you're building a turbocharged, supercharged, or naturally aspirated race engine, the 105mm MAX provides the airflow necessary to support serious horsepower.

Precision Billet Construction

Each throttle body is precision CNC-machined from 6061-T6 billet aluminum and finished in a durable black anodized coating.

Additional premium features include:

• CNC-machined billet aluminum body
• Stainless steel throttle shaft
• Solid brass throttle blade
• Premium bushings, bearings, and hardware
• Split-shaft design for added durability
• Manufactured in the USA by Accufab

Features & Benefits

• Direct fit for 1986-1993 Ford Mustang 5.0L
• Massive 105mm single blade throttle body
• Flows up to 1,550 CFM
• Black anodized finish
• CNC-machined 6061-T6 billet aluminum construction
• Full stainless steel shaft
• Split-shaft design for increased durability
• Hard anodized 3-position linkage arm
• O-ring groove seal for superior sealing
• Air leak resistant to 100 PSI
• Idle Air Control (IAC) provision
• Manufactured in the USA

Specifications

Included Components

• Throttle Body O-Ring
• Threaded Ball Stud
• IAC Gasket

Mounting hardware is not included.

Installation Requirements

• Requires a 4.5-inch clamshell clamp (sold separately)
• Requires a 4.5-inch weld ferrule (sold separately)
• Requires 4.5-inch intake tubing or coupler
• No vacuum elbow is provided

Important Installation Note

Idle speed should be adjusted through proper Throttle Position Sensor (TPS) calibration only. Do not adjust the factory-set throttle stop screws, as they are precisely calibrated by Accufab to ensure proper throttle blade alignment and idle quality.
