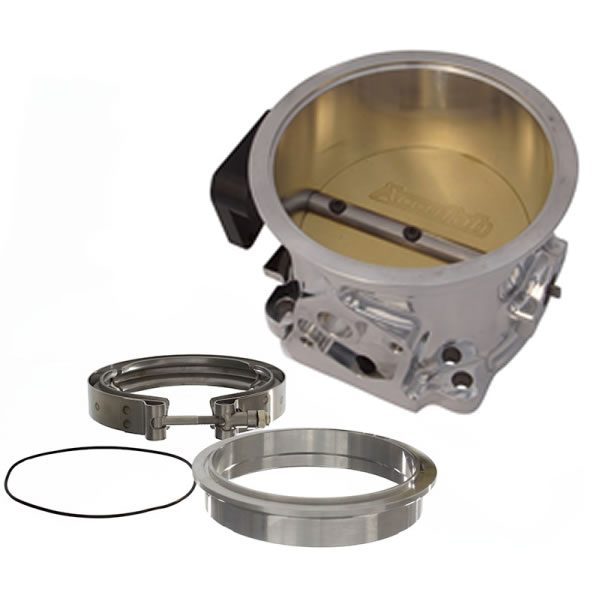

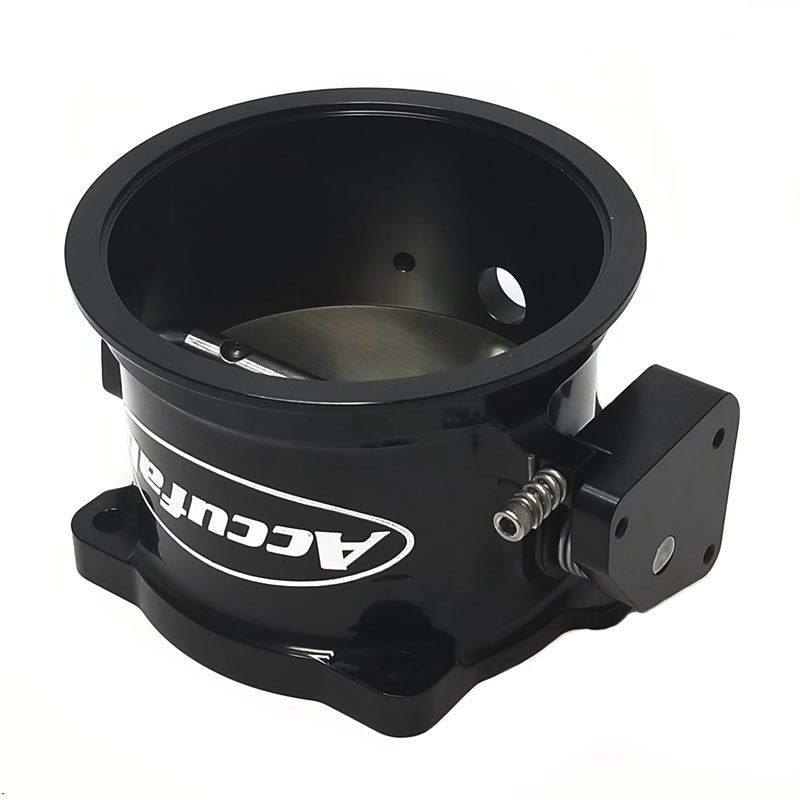

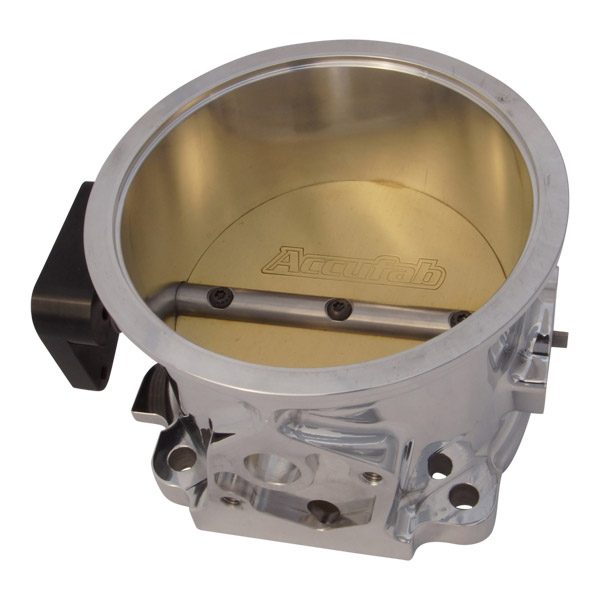

Maximize airflow and simplify your intake plumbing with the Accufab 105mm V-Band Single Blade Throttle Body. Designed specifically for 1986-1993 Ford Mustang 5.0L applications, this premium throttle body combines race-proven airflow with the convenience and superior sealing of a 4.5-inch V-band connection.

Flowing an impressive 1,550 CFM, the 105mm V-Band throttle body is engineered for extreme horsepower combinations, making it an excellent choice for turbocharged, supercharged, and naturally aspirated racing applications.

Premium V-Band Design

Unlike conventional hose-clamp style throttle bodies, the Accufab V-Band design provides a cleaner, more secure connection while simplifying installation and servicing.

Benefits include:

• Secure 4.5-inch V-band connection
• Superior sealing under high boost
• Faster installation and removal
• Clean, professional appearance
• Excellent for custom intake fabrication
• Air leak resistant up to 100 PSI

Whether you're building a street machine or a dedicated race car, the V-band connection offers improved reliability and easier maintenance.

Engineered for Maximum Performance

The Accufab 105mm V-Band throttle body incorporates premium features designed for high-performance applications:

• Massive 105mm single throttle blade
• Full stainless steel throttle shaft
• Split-shaft design for increased strength under high boost
• Hard anodized black 3-position linkage arm
• Threaded ball stud included
• Idle Air Control (IAC) provision
• Precision O-ring groove seal
• 4.5-inch V-band inlet

Precision Billet Construction

Each throttle body is precision CNC-machined from 6061-T6 billet aluminum and hand-finished for exceptional quality and durability.

Premium construction includes:

• CNC-machined 6061-T6 billet aluminum body
• Stainless steel throttle shaft
• Solid brass throttle blade
• Premium bushings, bearings, and hardware
• Split-shaft design for increased durability
• Polished finish
• Manufactured in the USA by Accufab

Features & Benefits

• Direct fit for 1986-1993 Ford Mustang 5.0L
• Large 105mm single blade throttle body
• Flows up to 1,550 CFM
• 4.5-inch V-band inlet connection
• CNC-machined 6061-T6 billet aluminum construction
• Full stainless steel throttle shaft
• Split-shaft design for added durability
• Hard anodized 3-position linkage arm
• Precision O-ring seal
• Air leak resistant to 100 PSI
• Idle Air Control (IAC) provision
• Manufactured in the USA

Specifications

Included Components

• Throttle Body O-Ring
• Threaded Ball Stud
• IAC Gasket

Mounting hardware is not included.

Installation Requirements

• Requires a 4.5-inch V-band clamp (sold separately)
• Requires a 4.5-inch weld ferrule (sold separately)
• Complete installation kits are available as an option when ordering.

Important Installation Note

Idle speed should be adjusted by properly calibrating the Throttle Position Sensor (TPS). Do not adjust the factory-set throttle stop screws, as they are preset by Accufab to ensure proper throttle blade alignment and idle quality.
