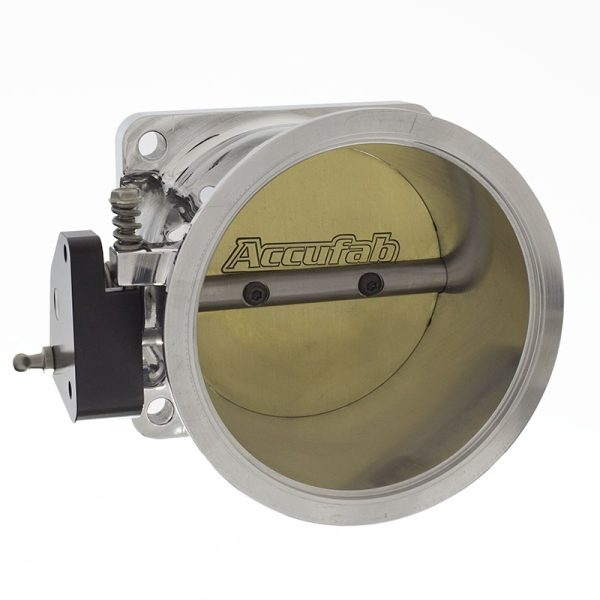

Accufab 90mm V-Band Single Blade Throttle Body – 1986-1993 Ford Mustang 5.0L

Upgrade your Fox Body Mustang with the Accufab 90mm V-Band Single Blade Throttle Body, engineered to deliver exceptional airflow, precise throttle response, and superior sealing for high-performance street and race applications. Designed specifically for 1986-1993 Ford Mustang 5.0L engines, this throttle body replaces the restrictive factory unit with a premium billet aluminum design capable of flowing 1,369 CFM.

Unlike traditional clamp-on throttle bodies, the V-band inlet provides a cleaner installation, improved sealing, and simplified serviceability, making it an excellent choice for custom intake systems and forced induction applications.

Premium V-Band Design

The Accufab 90mm V-Band throttle body utilizes a 4-inch V-band inlet, eliminating the need for conventional hose clamps while providing a secure, leak-resistant connection.

V-Band Benefits

• Secure 4-inch V-band connection
• Superior sealing under high boost
• Air leak resistant up to 100 PSI
• Easier installation and removal
• Clean, professional appearance
• Ideal for custom intake fabrication

Every 90mm throttle body is measured at the throttle blade and requires 4-inch intake tubing.

Although not shown in some product images, all 90mm V-Band throttle bodies include provisions for the factory Idle Air Control (IAC) motor.

Precision Billet Construction

Each throttle body is CNC-machined from 6061-T6 billet aluminum for exceptional strength, durability, and precision.

Premium construction features include:

• CNC-machined 6061-T6 billet aluminum body
• Full stainless steel throttle shaft
• Split-shaft design for increased durability under high boost
• Solid brass throttle blade
• Premium bushings, bearings, and hardware
• Three-position aluminum linkage arm
• Available in Polished or Black Anodized finishes
• Manufactured in the USA by Accufab

Features & Benefits

• Direct fit for 1986-1993 Ford Mustang 5.0L
• Large 90mm single blade throttle body
• Flows up to 1,369 CFM
• 4-inch V-band inlet connection
• CNC-machined 6061-T6 billet aluminum construction
• Full stainless steel throttle shaft
• Split-shaft design for added durability
• Three-position throttle linkage
• O-ring groove seal
• Air leak resistant to 100 PSI
• Idle Air Control (IAC) provision
• Manufactured in the USA

Specifications

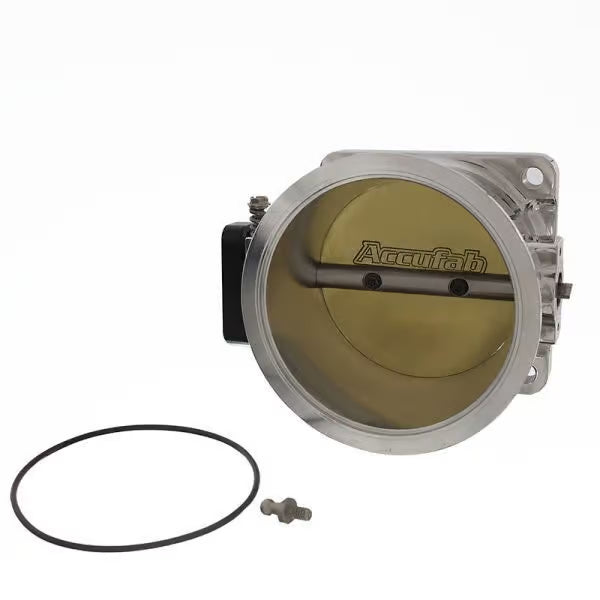

Included Components

• Throttle Body O-Ring
• 1/4"-20 Threaded Ball Stud
• IAC Gasket

Mounting hardware is not included.

Optional Accessories

For custom EFI applications, the optional Accufab TPSGM Adapter allows the use of a late-model GM Throttle Position Sensor (TPS) in place of the factory Ford sensor.

Important Installation Notes

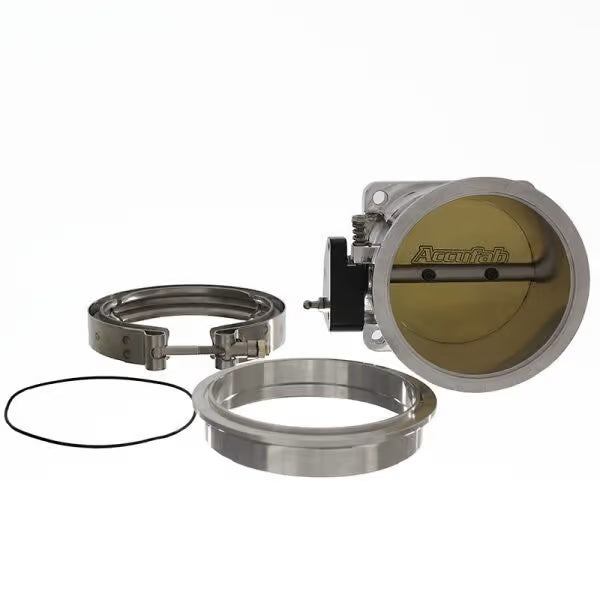

• Requires a 4-inch V-band clamp (sold separately).
• Requires compatible 4-inch intake tubing and weld ferrule (sold separately).
• Idle speed should be adjusted by properly calibrating the Throttle Position Sensor (TPS).
• Do not adjust the factory-set throttle stop screws, as they are preset by Accufab to ensure proper throttle blade alignment and idle quality.
